Fume Hoods
Basic Fume Hoods. Labconco
Basic Laboratory Hoods are designed specifically for laboratories, classrooms and light duty applications where safe ventilation is required. Constructed of epoxy-coated steel, Basic Hoods are economical and have a smaller overall height and depth than traditional hoods so they fit in areas with low ceilings or narrow aisles. Basic Laboratory Hoods have a by-pass airflow design, 3/16" thick tempered safety glass vertical-rising sash, 10.13" OD exhaust connection, removable front panel, air foil and two-piece adjustable baffle. Right side fixture panel factory-prepared to accept up to three ser
Catalog No.: F6110-1 | F6110-2 | F6110-3 | F6110-4 | F6110-5 | F6110-6
Fiberglass 30 Laboratory Fume Hoods. Labconco
Compact, benchtop Fiberglass 30 Laboratory Hoods are designed for research, educational and clinical applications requiring small working space and efficient fume removal. The fiberglass liner is corrosion-resistant, durable, fire-resistant and light reflective. The smooth one-piece molded construction offers fewer crevices for easy cleaning. Fiberglass 30 Laboratory Hoods are suitable for general chemistry applications. Explosion-proof models are available for applications involving high concentrations of flammable solvents. Choose from hoods designed to be used with a remotely-located blower
Catalog No.: F6091-1 | F6091-2 | F6091-3
Purifier HEPA Filtered Enclosures. Labconco
Purifier HEPA Filtered Enclosures protect the user from agents that require Biosafety Level 1, 2 or 3 containment but no product protection. Exclusive features include: ergonomic air foil with aerodynamic Clean-Sweep airflow openings; upper dilution air supply; zone-perforated rear baffle; side-entry air foils; and upper containment sash foil. Other features include: nominal inflow velocity of 75 to 105 fpm; 99.99% efficient exhaust HEPA filter; variable speed built-in blower with vibration-isolated impeller and solid state control rated for 2 amps; intrinsically-safe, negative pressure design
Catalog No.: F6086-1 | F6086-2 | F6086-3 | F6086-4 | F6086-5 | F6086-6
Purifier Class 1 Safety Enclosures. Labconco
Purifier Class I Enclosures protect the user from agents that require Biosafety Level 1, 2 or 3 containment but no product protection. Exclusive features include: ergonomic air foil with aerodynamic Clean-Sweep airflow openings; upper dilution air supply; zone-perforated rear baffle; side-entry air foils; and upper containment sash foil. Other features include: nominal inflow velocity of 75 to 105 fpm; 99.99% efficient exhaust HEPA filter; variable speed built-in blower with vibration-isolated impeller and solid state control rated for 2 amps; intrinsically-safe, negative pressure design; Mini
Catalog No.: F6085-1 | F6085-2 | F6085-3 | F6085-4 | F6085-5 | F6085-6
Filtered PCR Enclosures. Labconco
Purifier Filtered PCR Enclosures provide ISO Class 5 conditions appropriate for polymerase chain reaction experiments. Exclusive features: variable digital timer for UV exposure with eight settings in minutes of 5, 10, 15, 30, 60, 120, 240 and continuous; bi-fold doors that close the sash opening; aerodynamic air foil; UV-resistant, glacier white and gray, dry powder epoxy-coated aluminum and steel construction; UV-opaque and resistant 1/4" thick clear tempered safety glass sash and sides; ergonomic 10 degree angled and hinged sash that pivots upward, locks to a loading height of 20" and has w
Catalog No.: F6081-1 | F6081-2 | F6081-3 | F6081-4 | F6081-5 | F6081-6
Protector® ClassMate Laboratory Fume Hood. Labconco
The patented Protector® ClassMate Laboratory Hood is designed to meet the needs of instructional laboratories. Clear back and sides and taller front viewing window provide enhanced visibility for conducting chemistry demonstrations or observing students using the hood. The clear back also does not obstruct visibility when hoods are placed back-to-back in an island configuration. Clear, 1/4" thick, tempered safety glass sides, back and baffle provide maximum visibility and are removable for cleaning. Fully-featured with baffle and air foil, this by-pass hood maintains safe airflow while the re
Catalog No.: F6076-1 | F6076-2 | F6076-3 | F6076-4 | F6076-5 | F6076-6
Demonstration Fume Hood. Labconco
Protector® Demonstration Hoods are low profile, light-duty fume hoods designed to provide close observation of procedures during educational demonstrations. 33.6" w x 29.1" d (heights vary, see below). Features include: ergonomic air foil with aerodynamic Clean-Sweep airflow openings; upper containment sash foil; upper dilution air supply; and side-entry air foils. Other features include: glacier white and gray, dry powder epoxy-coated aluminum frame; tempered safety glass front sash, sides, rear baffle and top for total visibility; lower exhaust tissue screen; two utility ports with iris ope
Catalog No.: F6117-1 | F6117-2 | F6117-3 | F6117-4
Protector XL Floor-Mounted Walk-In Laboratory Hoods
Protector XL Floor-Mounted (Walk-In) Laboratory Hoods have panel liners that may be constructed of a variety of corrosion-resistant materials and supplied in three depths to meet individual installation and application requirements. These Floor-Mounted (Walk-In) Laboratory Hoods have a by-pass airflow design, 12.81" ID exhaust connection, 3/16" thick sashes, chemical resistant molded composite panel liner and adjustable baffles, front and interior access panels. ADA-compliant light and blower switches and 2 service fixtures. Glacier white dry powder epoxy-coated steel exterior. Remote blower r
Catalog No.: F6032-1 | F6032-2 | F6032-3 | F6032-4 | F6032-5 | F6032-6 | F6032-7 | F6032-8 | F6032-9 | F6032-10 | F6032-11 | F6032-12 | F6032-13 | F6032-14 | F6032-15

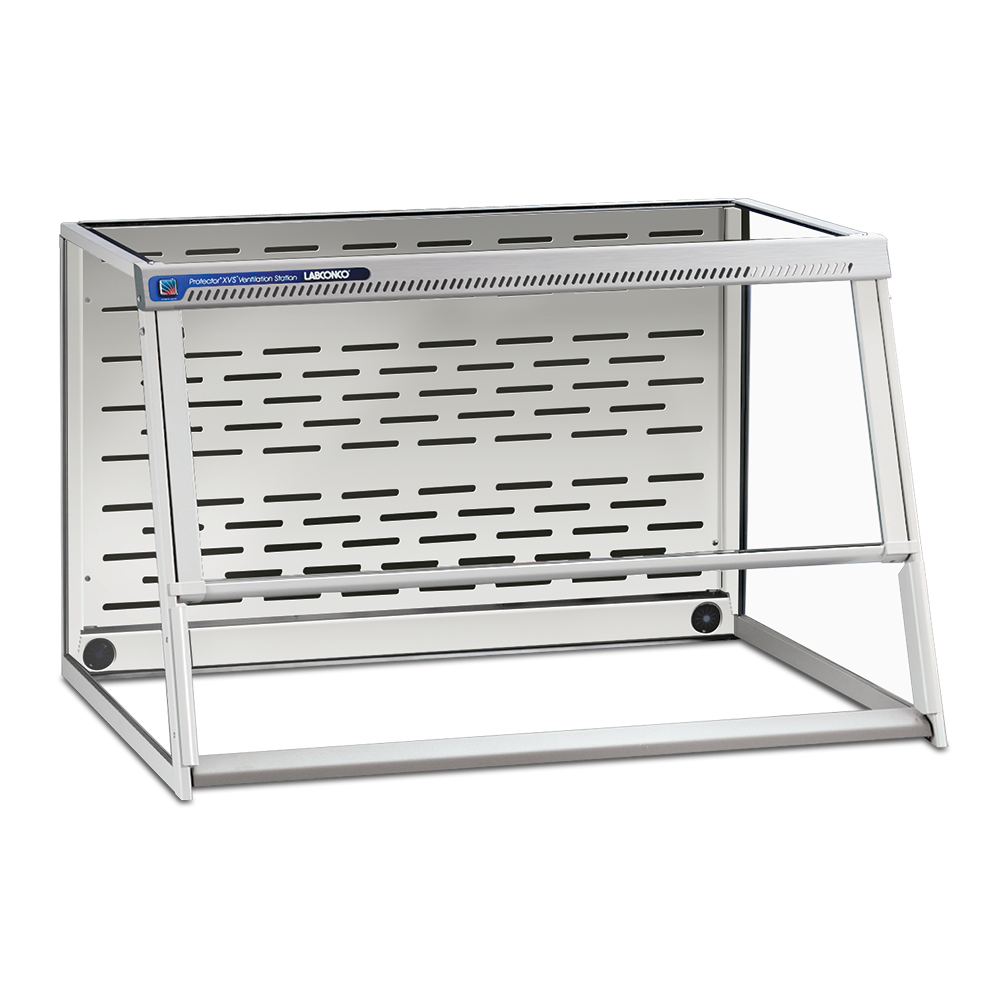

Protector XVS Ventilation Stations. Labconco
Protector XVS Ventilation Stations provide user protection by keeping powders and fumes contained during light duty, fume-generating or weighing procedures. Patented features include air foil with Clean-Sweep openings to enhance airflow and zoned-perforated rear baffle that creates horizontal laminar airflow to maximize containment. Features include upper dilution air supply and upper containment sash foil, side-entry air foils, built-in top-mounted airflow monitor; low profile design; dry powder, sturdy epoxy-coated aluminum frame and steel rear panel and baffle; 3/16" thick, non-static produ
Catalog No.: F6124-1A | F6124-1B | F6124-2A | F6124-2B | F6124-3A | F6124-3B
Protector® PVC Perchloric Acid & Acid Digestion Fume Hoods
Protector PVC Perchloric Acid Laboratory Hoods feature washdown systems, integral work surfaces and drainage troughs so that they may be thoroughly rinsed after each use to prevent the accumulation of potentially reactive perchloric salts. Their liners of Type 1 unplasticized polyvinyl chloride are designed to withstand reaction from perchloric acid. Protector PVC Perchloric Acid Laboratory Hoods have a by-pass airflow design, heat-welded unplasticized PVC interior with integral work surface and drainage trough, built-in washdown system with internal piping and spray nozzles and remote control
Catalog No.: F6128-1 | F6128-2 | F6128-2A | F6128-3 | F6128-4 | F6128-4A
Canopy Hoods. Labconco
Canopy Hoods are specifically designed to vent non-toxic materials such as heat, steam and odors from large or bulky apparatus such as ovens, steam baths and autoclaves. The hood may be installed on a wall or suspended from the ceiling for peninsular and corner locations. Built-in baffle to increase air velocities and enhance its overall capture efficiency. Glacier white epoxy-coated steel construction. Coupled with a blower and ductwork, the Canopy Hood can operate at a wide range of exhaust rates. Remote blower or FilterMate Portable Exhauster and filters required. 115V.
Catalog No.: F6116-1 | F6116-2
Protector® Work Stations. Labconco
Protector® Work Stations are specifically designed for the needs of pathologists and histotechnologists. These enclosures rely on patented containment-enhancing features and face velocities from 60 to 100 fpm to rid the laboratory of solvent vapors associated with gross sectioning, trimming, cover slipping and staining. Protector Work Stations are ideal for cramped or crowded labs as they feature a low profile to fit easily under standard upper cabinets. Protector® Work Station without built-in blower is designed for connection to a remote blower or house exhaust system. Exclusive features i
Catalog No.: F6121-1
