Clamps

Photo of Swinging Jaw Compressor Clamp
Screw Compressor Clamps are used to control the flow in flexible tubing. The clamps have a machined adjustment screw to permit accurate regulation of the flow. All corners are rounded to prevent cutting of the tubing. The clamps feature brass construction that is plated for corrosion resistance and long life.
Photo of Open Jaw Compressor Clamp
Screw Compressor Clamps are used to control the flow in flexible tubing. The clamps have a machined adjustment screw to permit accurate regulation of the flow. All corners are rounded to prevent cutting of the tubing. The clamps feature brass construction that is plated for corrosion resistance and long life.
Photo of Closed Jaw Compressor Clamp
Screw Compressor Clamps are used to control the flow in flexible tubing. The clamps have a machined adjustment screw to permit accurate regulation of the flow. All corners are rounded to prevent cutting of the tubing. The clamps feature brass construction that is plated for corrosion resistance and long life.

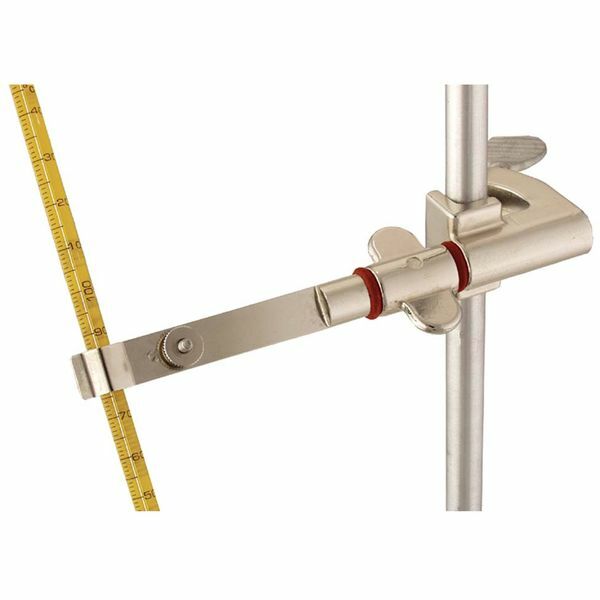

Photo of Adjustable Band Clamps
The Adjustable Band Clamp is designed to hold thermometers, test tubes, probes and other small hardware. The unit consists of a corrosion-resistant, stainless steel clamp that can withstand temperatures in excess of 2300°F (1260°C). Highly versatile, this 1/2" (13mm) single "V" style clamp will accept objects ranging from 0 to 1-1/2" (38mm) in diameter. To withstand twisting and bending, the band is constructed from 100,000-PSI tensile strength steel.
Photo of Ball Joint Clamps
Designed for use with spherical ball/socket glass joints, especially where frequent disassembly is not required. The clamps consist of two separate flat horseshoe-shaped sections with machine bolts and nuts. Clamp portions are constructed from stainless steel.

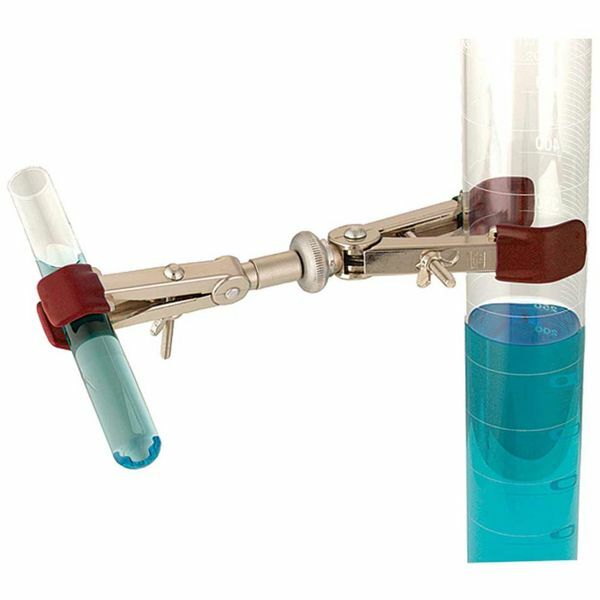

Photo of Troemner Talboys 2-Jaw Single Adjust Extension Clamps

Troemner Talboys 2-Jaw Single Adjust Extension Clamps are designed to securely hold laboratory glassware and apparatus. Extension arm attaches clamp head securely and offers easy positioning in the deepest fume hoods. Clamps are constructed with round extension arms, which allow the clamps to be rotated 360°. Extension arms also allow placement of apparatus at various distances from lab-frames without compromising the integrity of your experiment. Nickel-plated zinc construction. Supplied with non-slip vinyl sleeves, and for temperatures above 100°C, fiberglass covers.

Photo of Troemner Talboys Jumbo Clamp Holders

Ideal for holding clamps to lab-frames or ring stands. Stainless steel electro-polished finish or aluminum construction.

(Sample Photo Displayed. Individual items may differ from the image shown.)



Photo of Troemner Talboys Regular Hosecock Clamps

Troemner Talboys Hosecock Clamps offer easy one-hand operation. Convex bearing surfaces and rounded edges protect tubing. Pinchcocks are designed to quickly start and stop flow to provide complete closure without damaging tubing. Operated with a simple squeeze operation. Constructed of nickel-plated zinc or stainless steel. Adjustment screw with oversized head for accurate regulation. Built-in side lugs for foot mounting. 17mm (0.67") Max Opening.

(Sample Photo Displayed. Individual items may differ from the image shown.)



Photo of Troemner Talboys Right Angle Clamp Holders

Troemner Talboys Right Angle Clamp Holders are Ideal for holding clamps to lab-frames. Use wherever clamping at 90° is required. Contructed of Nickel-plated zinc or stainless steel.

(Sample Photo Displayed. Individual items may differ from the image shown.)



Photo of Troemner Talboys Swivel Clamp Holders

Troemner Talboys Swivel Clamp Holders have two rod holders with center swivel capacity allow tilting of clamps at any angle in parallel planes. Outside adjustments screw allows close proximity between items being held. Nickel-Plated Zinc or Stainless Steel construction.

(Sample Photo Displayed. Individual items may differ from the image shown.)



Photo of Polypropylene Burette Clamps
These non-corroding, polypropylene burette clamps do not obscure graduations. Burette is held firmly in place by rubber pads and a concealed steel spring. Center clamp tightens to a standard support rod; 12.5mm (1/2") and 9.5mm (3/8") bushings included.
Photo of Support Rings with Clamp
Cast iron support rings with clamp. Use on support rods up to ½" diameter. Center distance from each ring to support rod is 4½".
Photo of Extension Support Rings
Cast iron extension support rings without clamp. Allows range of horizontal adjustment.
Photo of Day's Pinchcock Clamp
Steel wire; nickel plated. Jaw opening for up to ⅜" (10mm) diameter tubing. Length 2⅝" (67mm).
Photo of Large Opening Stoddard Test Tube Clamp

Self-closing; rectangular Jaw; plain brass wire with finger grips. Length 6" (152mm) with a jaw opening for up to 1¼" (32mm) diameter test tubes.

Photo of Stoddard Test Tube Clamp
Self-closing; rectangular Jaw; plain brass wire. Length 5" (127mm) with a jaw opening for up to 1" (25mm) diameter test tubes.
Photo of Coated Bunsen Round Jaw Extension Clamp
Plastic coated swivel jaws of stamped steel with a forged Steel handle; 3/8" (10mm) diameter. Jaw opening ⅜" (10mm) to 1-⅜" (35mm). Length 8" (203mm).
Photo of Adjustable Clamp Holder
The adjustable clamp holder is designed for use with rods up to ½" (13mm). Made from cast iron with ¼" -20 aluminum alloy thumbscrews. Swivels and locks to any angle.
Photo of Clamp Holder with 5/16" Thumbscrew

The standard clamp holder is designed for use with rods up to ¾" (19mm). The adjustable version is designed for use with rods up to ⅝" (16mm) in diameter. Made from nickel-plated cast iron with 5/16" aluminum alloy thumbscrews.

Photo of Round Jaw Coated Buret Clamp
Clamp has Plastisol-coated jaws that rotate 360° and may be locked at any angle by checknut. Stamped steel with zinc plating. Length 6⅜" (162mm) jaw opening ⅜" (10mm) to 1⅜" (35mm).
